This guide treats the keyword Edge Fusion as Motorola Edge 60 Fusion, using the current Motorola Android/Hello UI settings flow for eSIM-capable regional variants. Some Edge Fusion variants or carrier firmware builds may not show eSIM options, so check that your phone has Add SIM or Add eSIM before you travel.
An iRoamly travel eSIM lets you add a data plan without changing your physical SIM card. That is useful when you want mobile data abroad while keeping your primary number available for banking, messaging, or calls on your home SIM.
The steps below cover both setup methods: scanning the iRoamly QR code and entering the activation code manually. The QR method is usually faster, while manual entry helps if the QR code is on the same phone, damaged, or difficult to scan.
Before You Set Up Your iRoamly eSIM
Connect the Edge Fusion to stable Wi-Fi before starting.
Make sure the phone is unlocked and running recent Motorola Android software with eSIM support enabled for your region and carrier firmware.
Keep your iRoamly QR code open on another screen, printed page, or another device.
Keep the manual activation information from iRoamly ready in case scanning does not work.
Do not delete an installed eSIM unless iRoamly support tells you to. Many travel eSIM profiles cannot be reinstalled after removal.
Install the eSIM 1 to 2 days before travel when possible, but confirm your plan terms first. iRoamly eSIM validity starts from activation, and the exact activation trigger can vary by plan.
Check the plan details before relying on calls or SMS. Many travel eSIM plans are data-only, and voice/SMS availability varies by plan.
Method 1: Install eSIM by Scanning a QR Code
1. Open Settings on the Edge Fusion and tap Network & internet.
You should see the phone's connection settings, including Wi-Fi, mobile network, and SIM options.
2. Tap SIMs.
The SIMs page should open and show the existing physical SIM or mobile network profiles on the phone.
3. Tap Add SIM or Add eSIM.
Motorola software labels can vary slightly by region. On eSIM-capable firmware, this opens the flow for adding a new mobile plan.

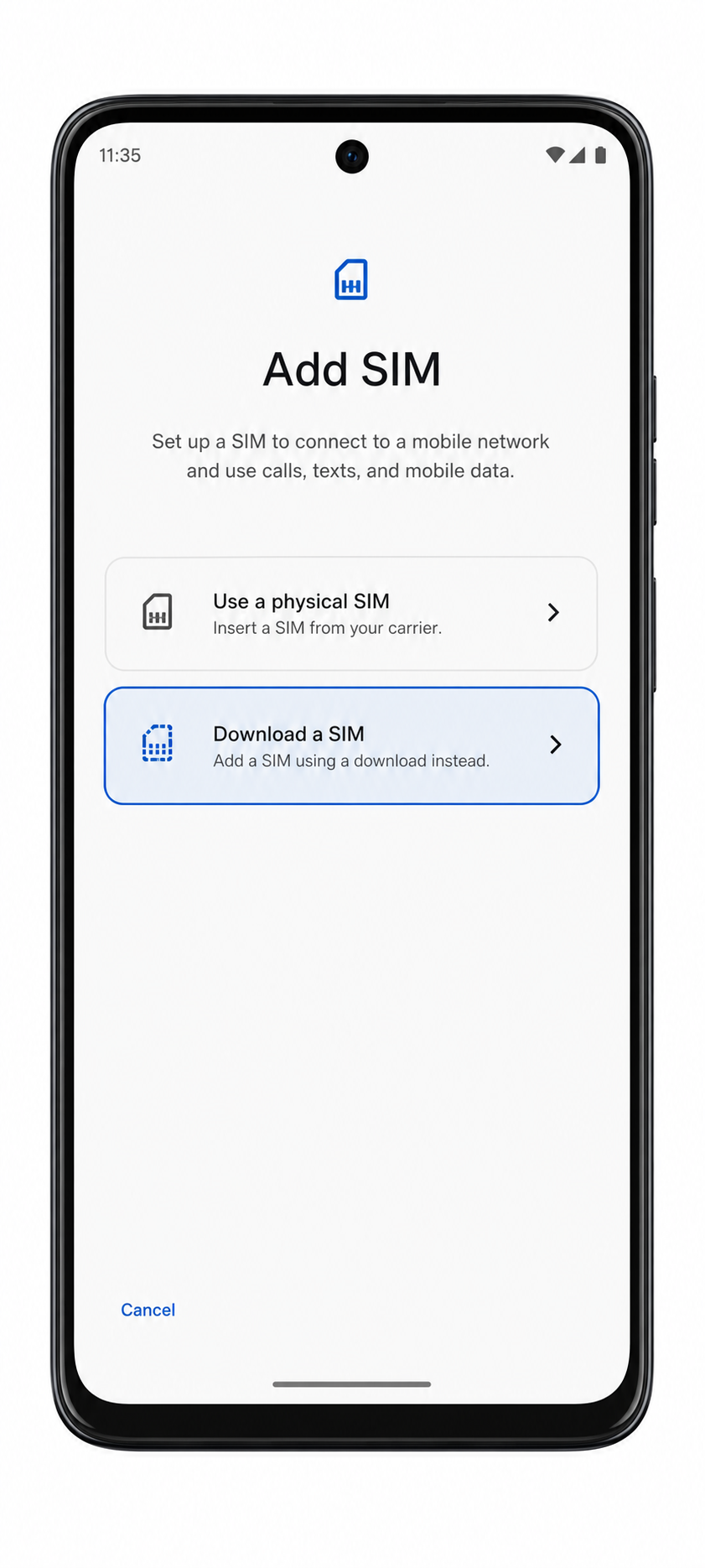

4. Choose Set up an eSIM or Download a SIM instead if the phone asks how you want to add the line.
The phone should open the eSIM setup screen and prepare the camera scanner.

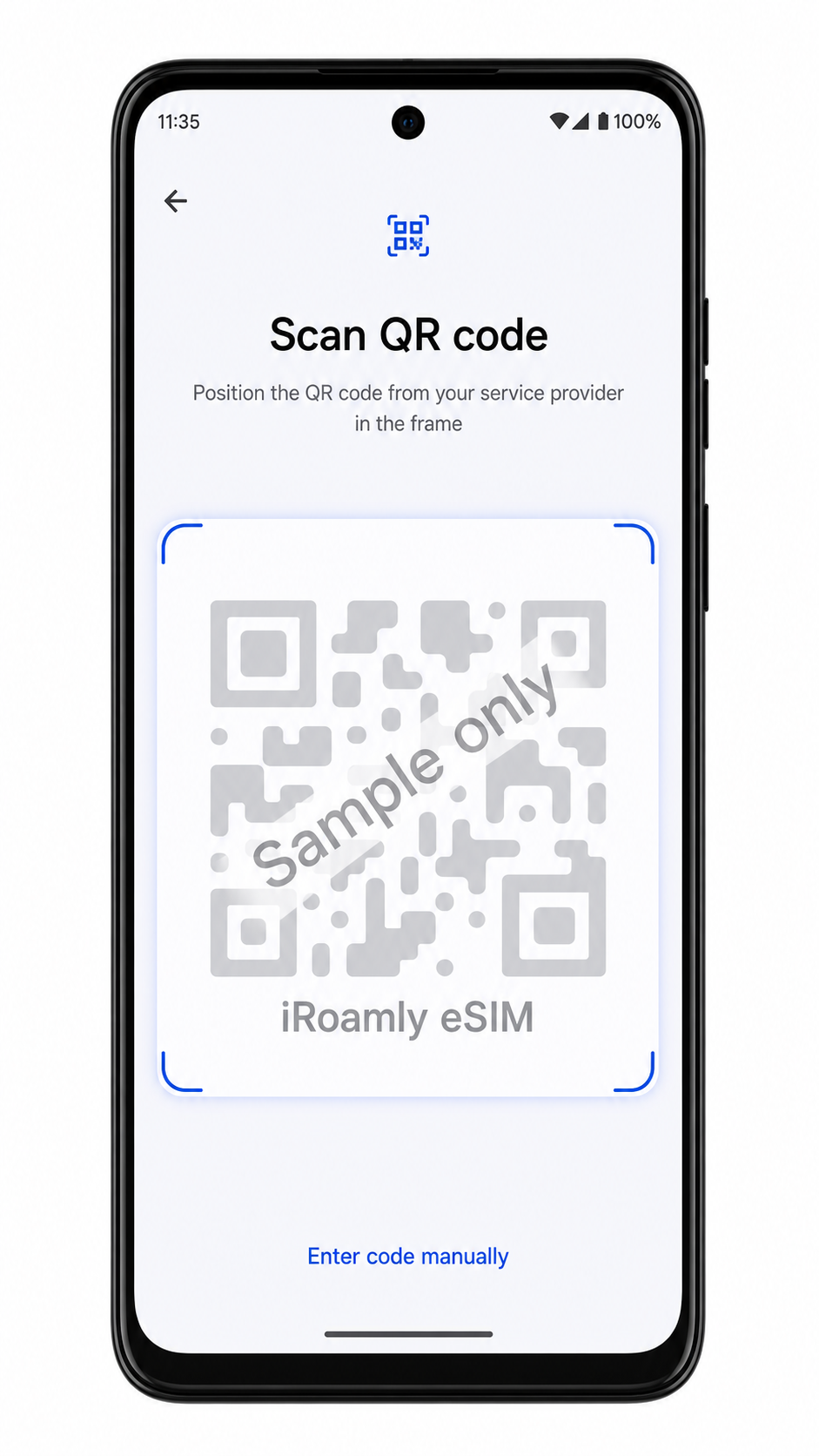

5. Point the camera at the iRoamly QR code and keep the code inside the scanning frame.
When the code is accepted, the phone should show a download or confirmation screen for the new eSIM profile.

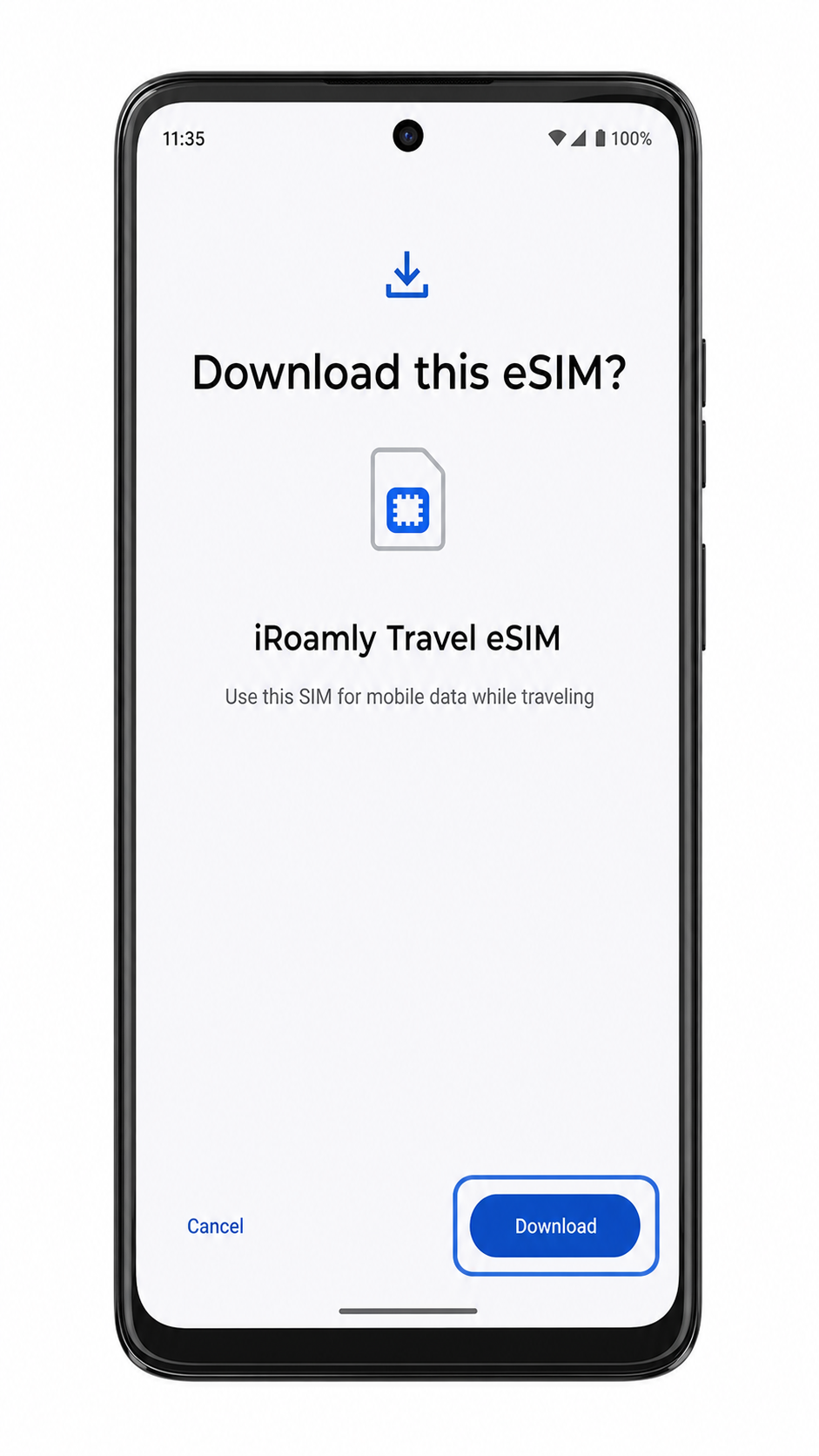

6. Tap Download, Activate, or Continue when the phone asks to add the eSIM.
Wait on Wi-Fi until the phone finishes downloading the iRoamly eSIM. If Android asks for a label, use iRoamly so the line is easy to recognize later.
Method 2: Install eSIM Manually
1. Open Settings and tap Network & internet.
This is the same starting point used for QR setup, but the manual method will use the activation details instead of the camera scanner.
2. Tap SIMs.
You should see the SIM management page for the Edge Fusion.
3. Tap Add SIM or Add eSIM.
The phone should open the add-SIM flow. If you only see physical SIM instructions and no eSIM option, your regional model or carrier firmware may not support eSIM setup.
4. Choose Set up an eSIM or Download a SIM instead.
The eSIM setup flow should open. If the QR scanner appears first, stay on that screen for the next step.

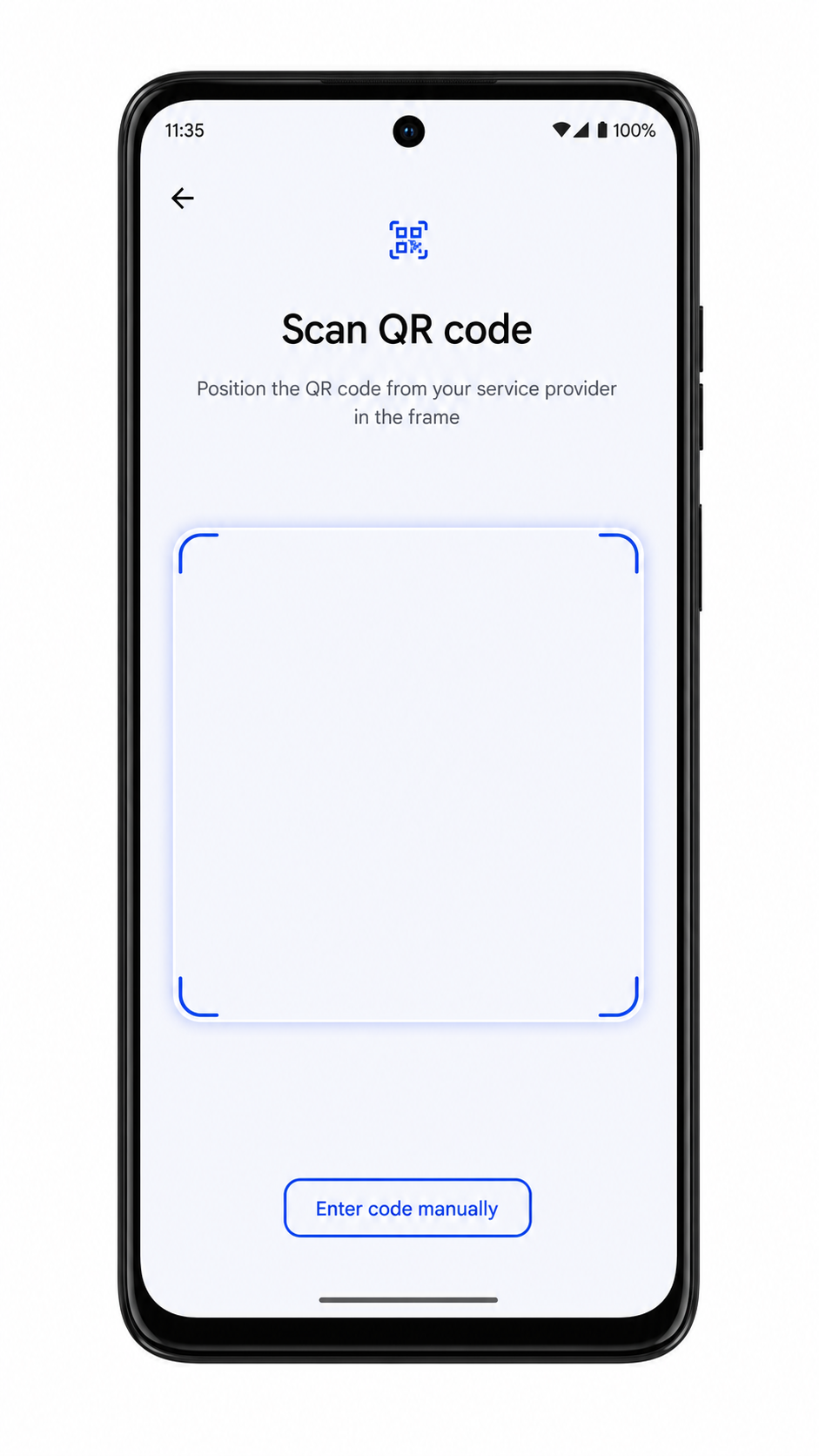

5. Tap Need help?, Enter code manually, or the manual-entry option shown on the QR scanner screen.
Motorola's current Android flow may show separate fields for SM-DP+ Address, Activation Code, and an optional confirmation code. Use the exact manual details from your iRoamly order email or account page.

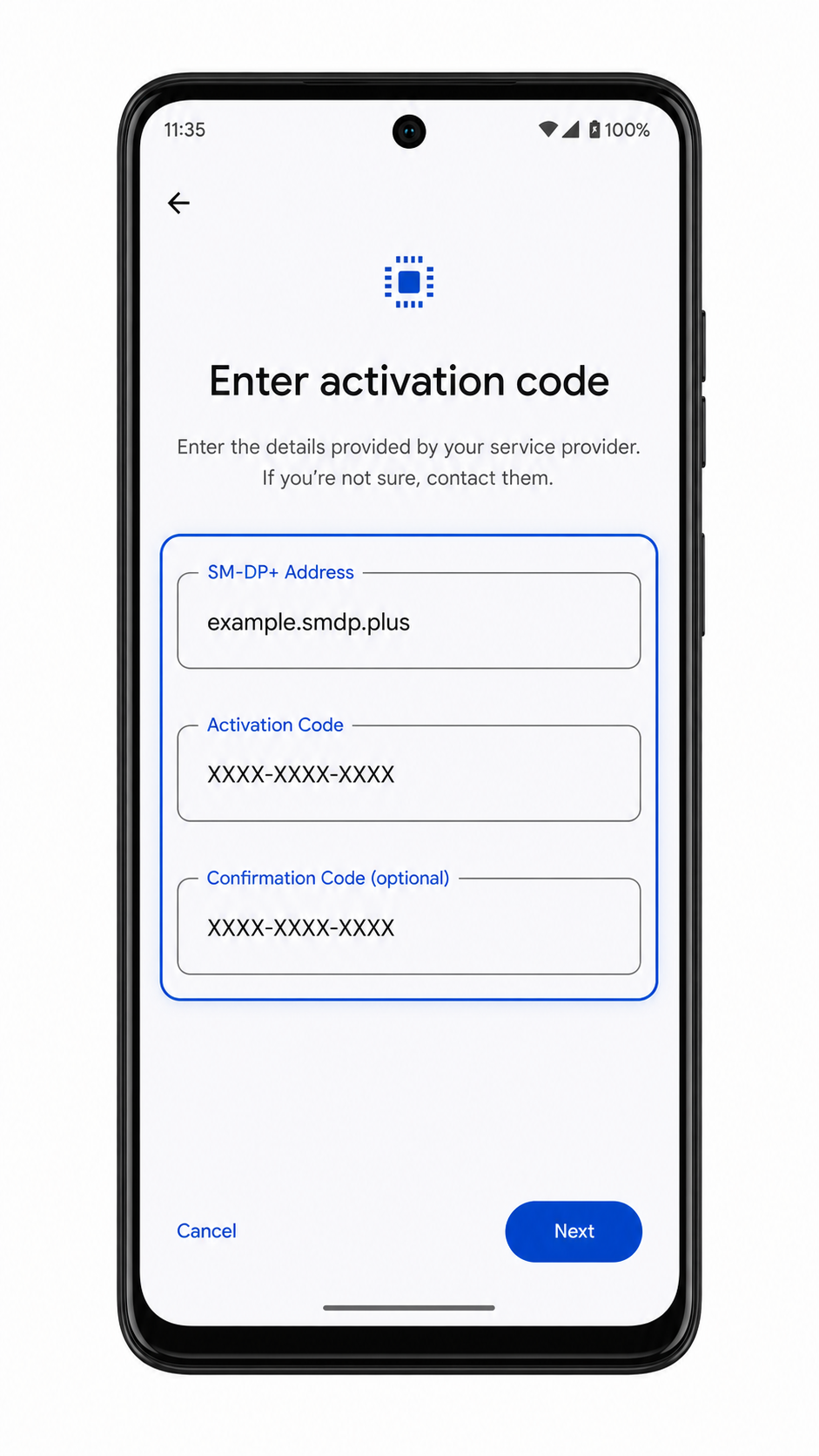

6. Enter the iRoamly SM-DP+ Address, Activation Code, and optional confirmation code, then tap Next or Continue.
Use placeholder-style formatting only when testing. Real iRoamly activation details are private and should come from your order email or iRoamly account.
7. Tap Download, Activate, or Continue when Android confirms the eSIM profile.
Keep the phone connected to Wi-Fi until the iRoamly eSIM finishes downloading and appears in the SIM list.
How to Confirm Your iRoamly eSIM Is Installed

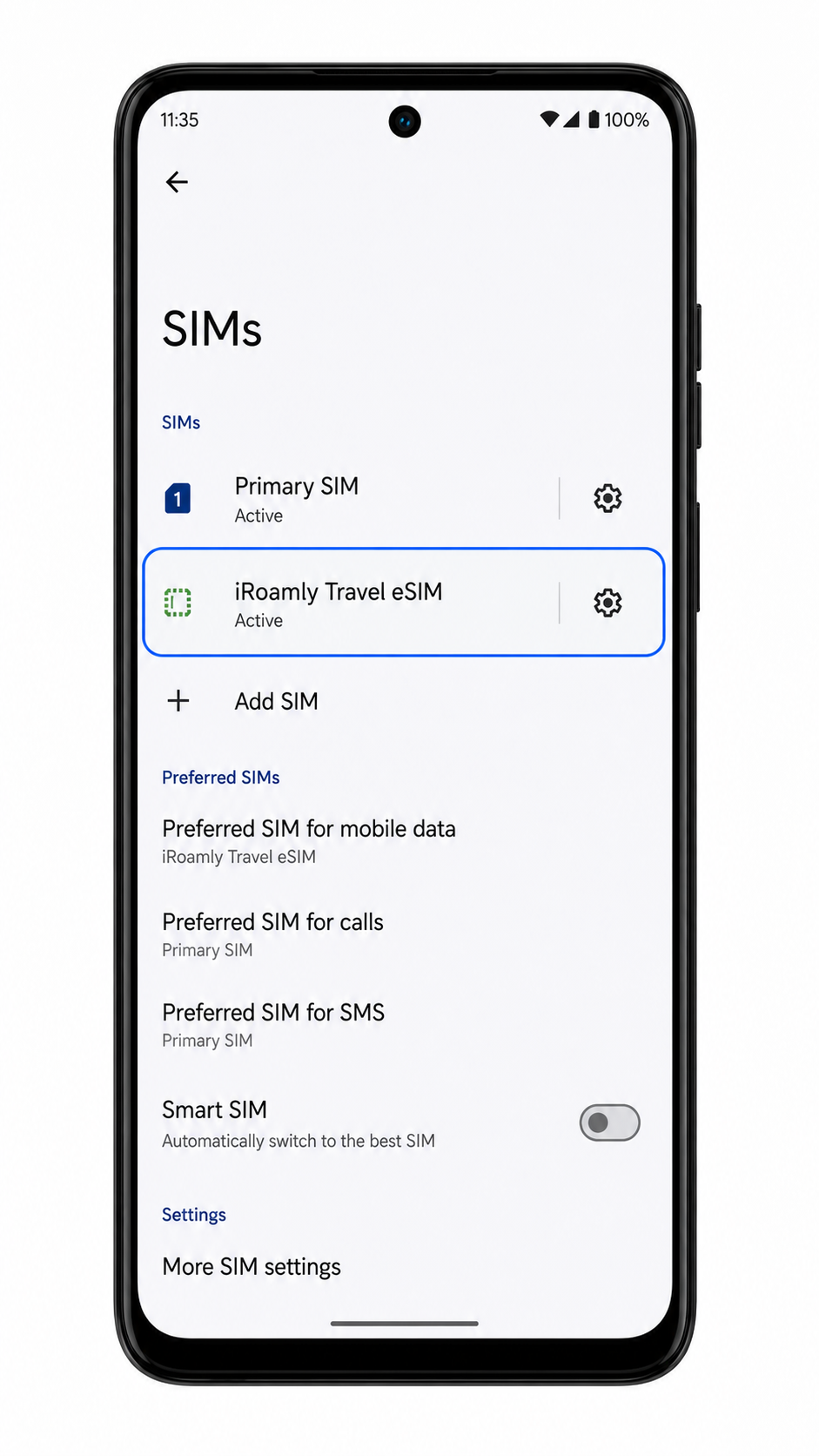

1. Go to Settings > Network & internet > SIMs.
The iRoamly eSIM should appear as a mobile plan or SIM profile. If the phone lets you rename it, use iRoamly for a clear travel-data label.

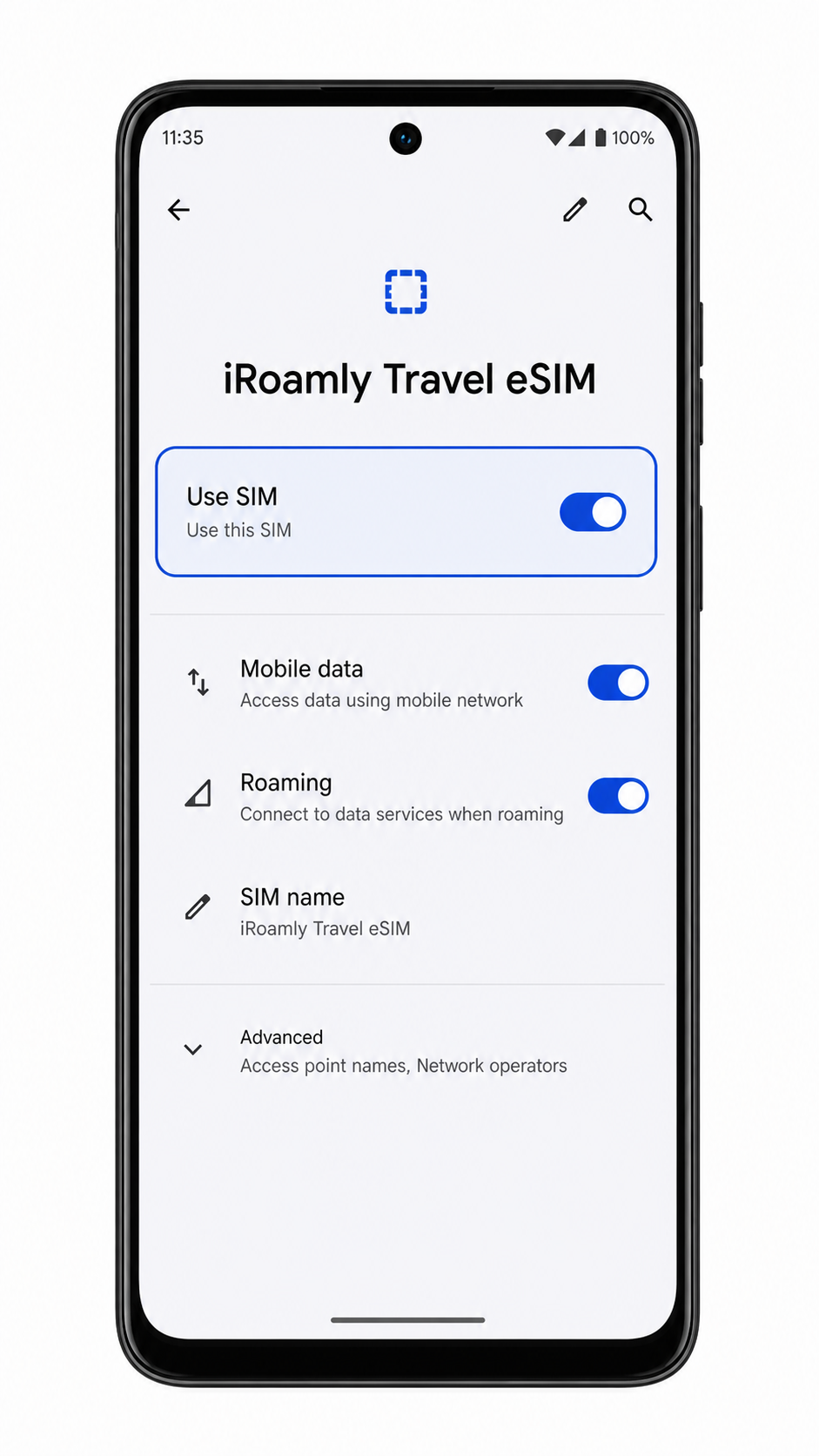

2. Tap the iRoamly eSIM profile and check that Use SIM is turned on when you are ready to use it.
If the plan has not connected yet, it may show as pending until you reach the destination network or the plan activation condition is met.

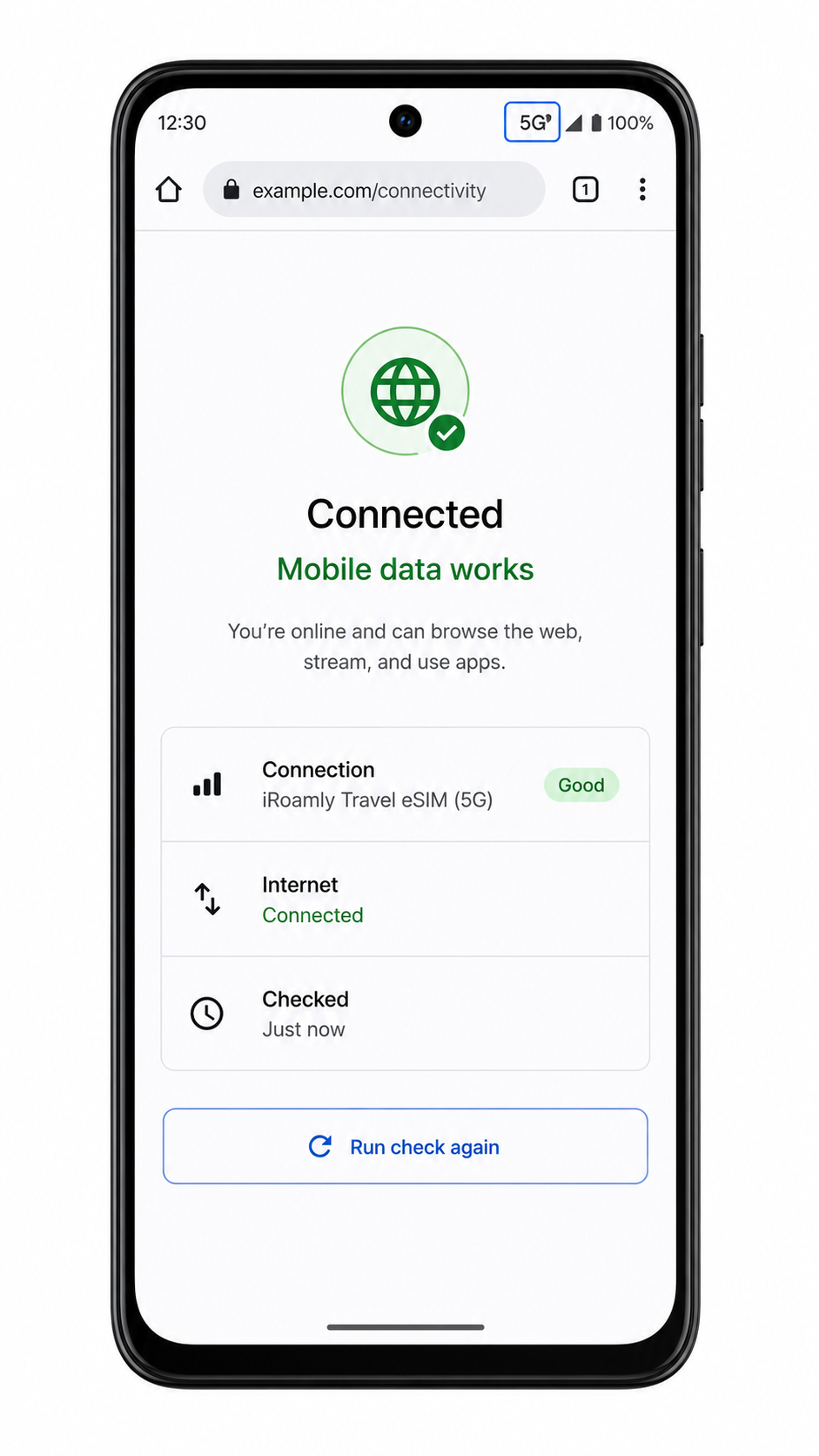

3. Test mobile data only after you are ready for the plan to be active.
Open a browser or map app using the iRoamly line. Do not test calls or SMS unless your specific iRoamly plan says those services are included.
Configure eSIM for Mobile Data
1. Open Settings > Network & internet > SIMs, then tap the iRoamly eSIM.
This opens the settings for the travel eSIM line.
2. Turn on Use SIM for the iRoamly eSIM.
The line must be enabled before it can provide mobile data.

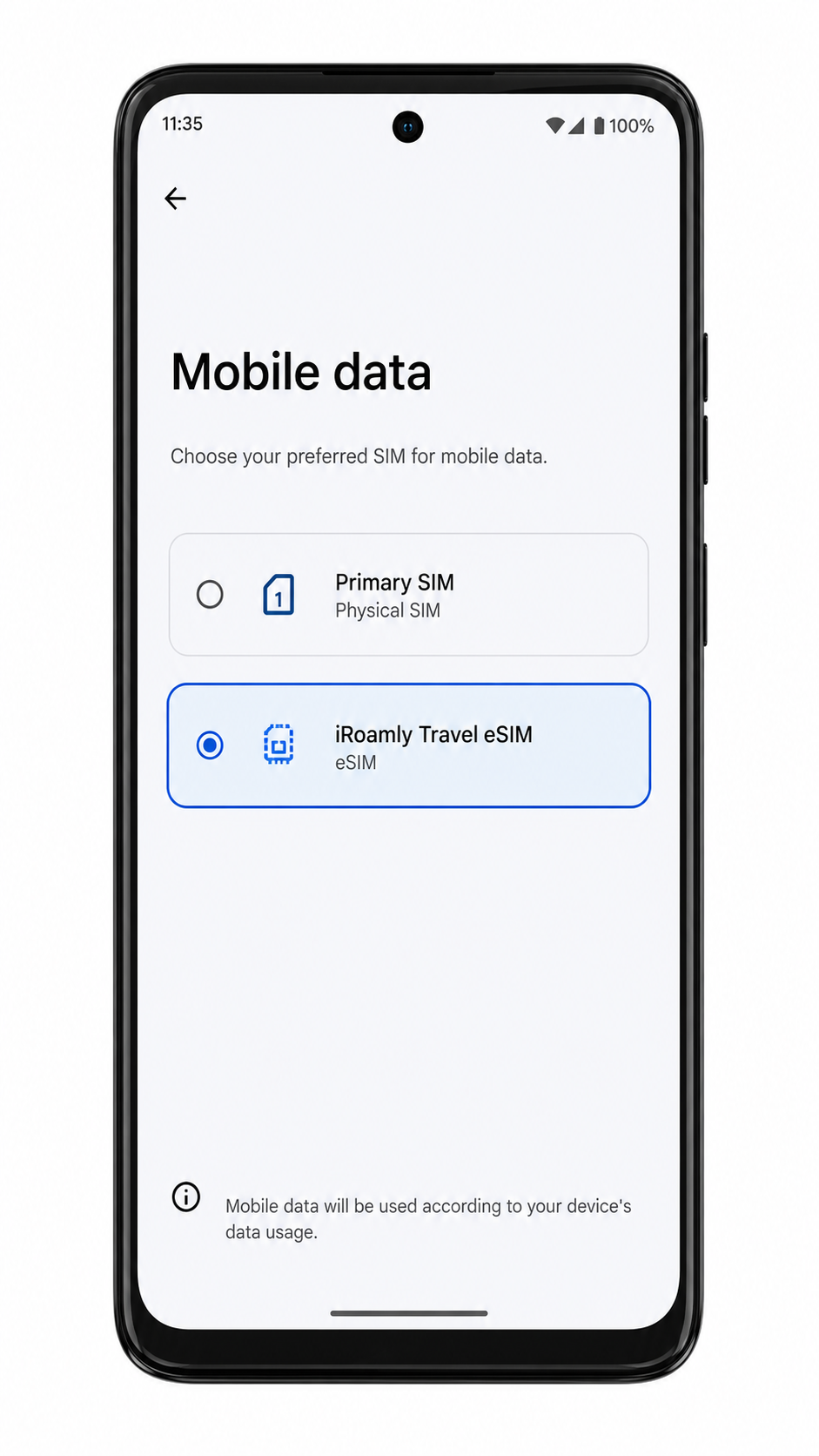

3. Tap Mobile data or Preferred SIM for mobile data, then choose iRoamly.
This tells the Edge Fusion to use the iRoamly eSIM for internet access instead of your primary SIM.

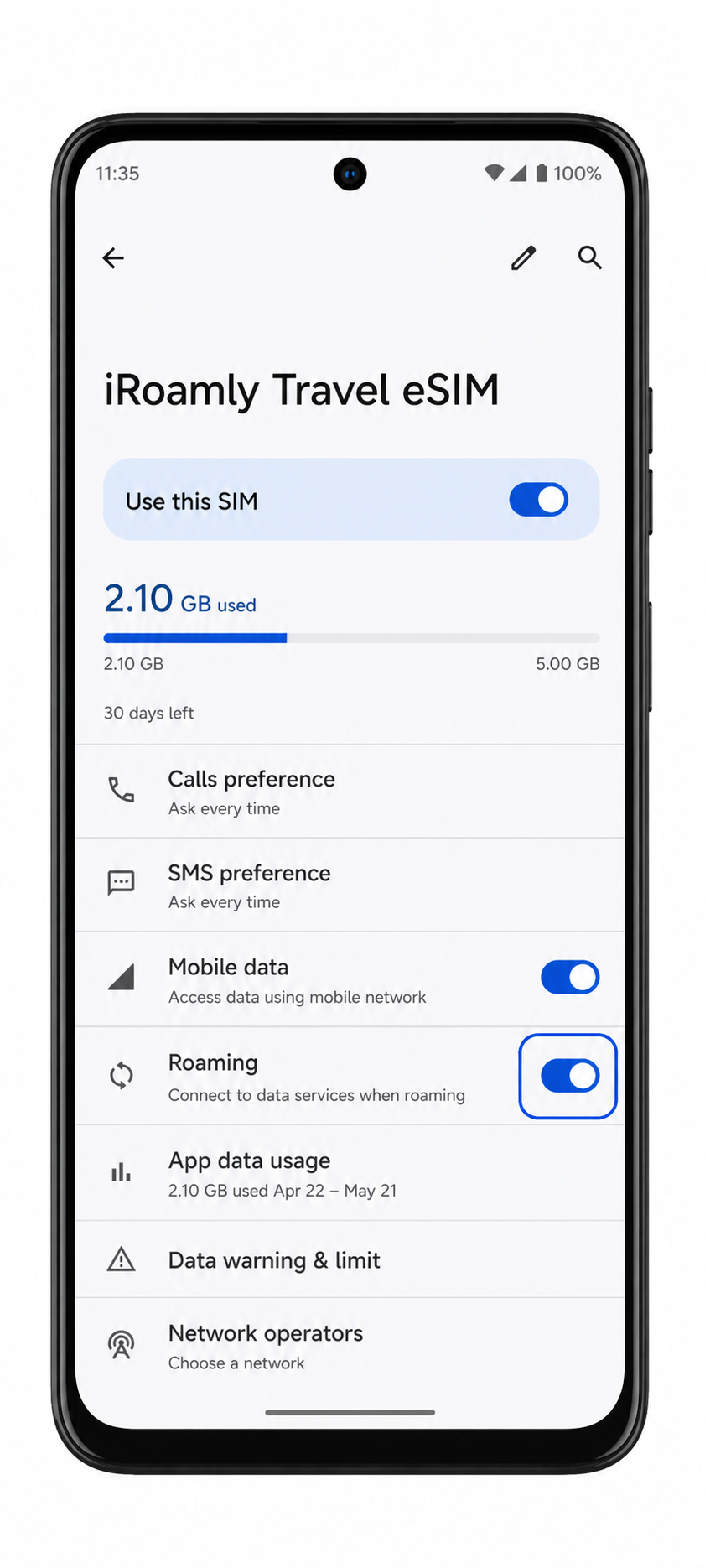

4. Turn on Roaming or Data roaming for the iRoamly eSIM if your destination plan requires it.
Travel eSIMs often need data roaming enabled to connect through a partner network. Keep roaming off on your primary SIM if you want to avoid home-carrier roaming charges.
Troubleshooting
If Add SIM or Add eSIM is missing, check for a Motorola software update, confirm that your Edge Fusion variant supports eSIM, and contact your carrier if the phone is locked.
If the QR code will not scan, increase screen brightness on the device showing the code, clean the camera lens, or use manual entry.
If the QR code says it has already been used, do not delete the eSIM. Contact iRoamly support because many eSIM QR codes are single-use.
If manual entry fails, check every character in the SM-DP+ Address, Activation Code, and optional confirmation code from your iRoamly order details.
If the eSIM is installed but there is no data, select iRoamly for mobile data, enable data roaming for the iRoamly line, turn airplane mode on and off, and restart the phone.
If activation remains pending, wait until you are in the destination country or covered network if your plan activates on first network connection.
If you see signal on the primary SIM but not iRoamly, make sure the iRoamly eSIM is turned on under Settings > Network & internet > SIMs.
If the phone shows only one SIM slot and no eSIM setup option, the regional Edge Fusion model may be a physical-SIM-only variant.
Conclusion
For an eSIM-capable Edge Fusion running current Motorola Android software, scanning the iRoamly QR code through Settings > Network & internet > SIMs is the quickest setup path because the phone can read and download the profile in one flow. Manual entry is the right fallback when the QR code cannot be scanned, but it needs the exact SM-DP+ Address and activation details from your iRoamly order.
Once the iRoamly profile appears in SIMs, turn on Use SIM, select iRoamly for mobile data, and enable data roaming for that line when the destination plan requires it. Those final settings are what make the installed travel eSIM ready for maps, messaging apps, and browsing abroad without moving data use back to your primary SIM.
