As mobile connectivity continues to evolve, eSIM is becoming a more efficient and convenient option for many users. Unlike traditional SIM cards, it removes the need for physical handling and simplifies the setup process.
For iPhone XR users, adding an eSIM can be done directly within the device as long as the necessary requirements are met.
If you already have your iRoamly eSIM details ready, this guide will walk you through each step of installation and activation, making the process clear and easy to follow—even if you're doing it for the first time.
Preparations Before Setting Up iRomly eSIM
Before starting, ensure you have the following:
A stable internet connection (Wi-Fi or cellular)
A valid eSIM QR code or manual activation details (SM-DP+ address and activation code) provided by your carrier
Your iPhone XR powered on and unlocked
The device updated to the latest iOS version (recommended for compatibility)
Method 1: Install eSIM via QR Code
Step 1: Open Cellular Settings

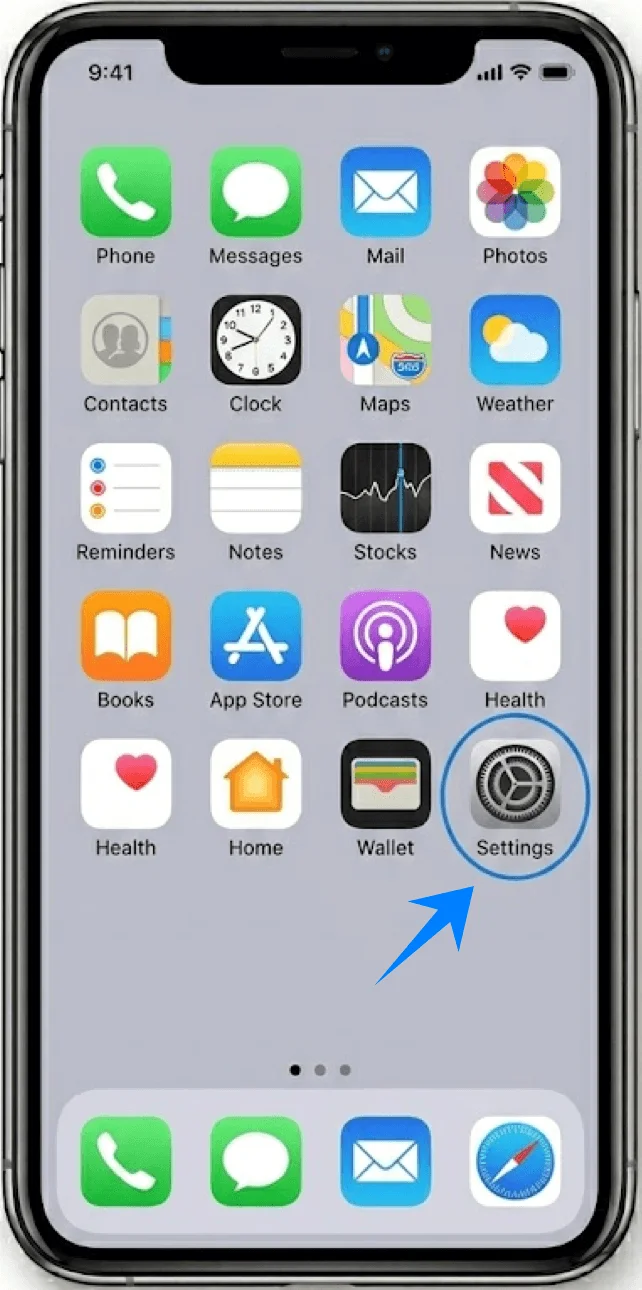

Tap Settings on the Home screen

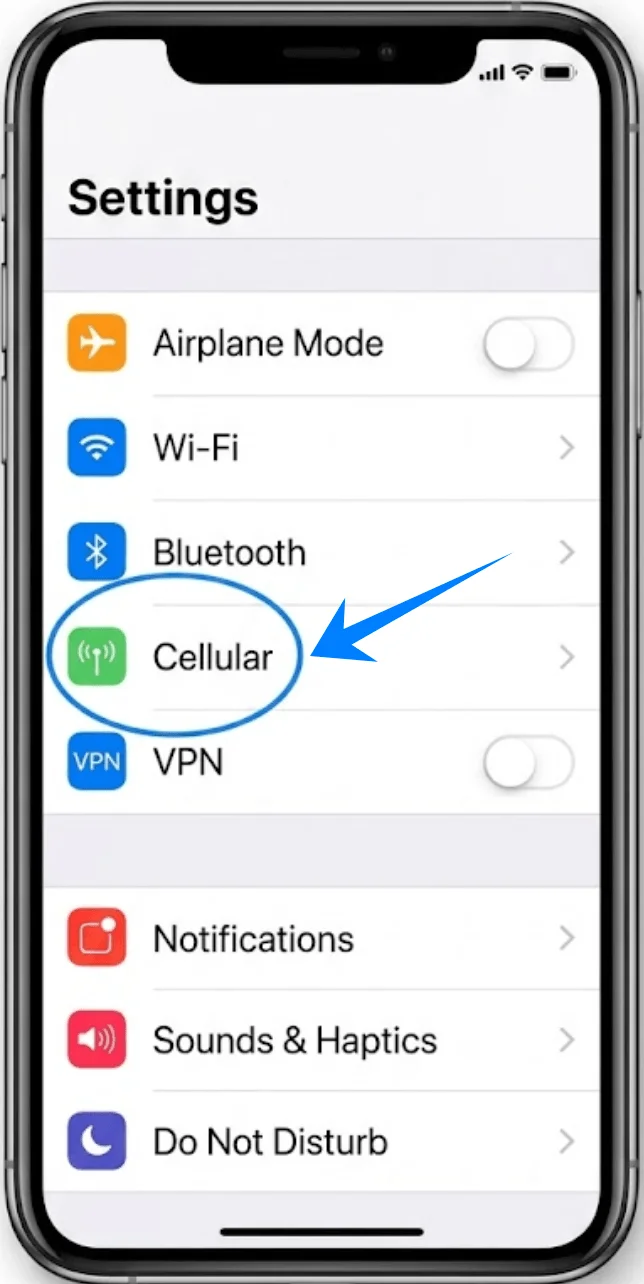

Scroll down and tap Cellular (This option may appear as “Mobile Service” or “Mobile Data” depending on system language or region)
Step 2: Add a New Cellular Plan

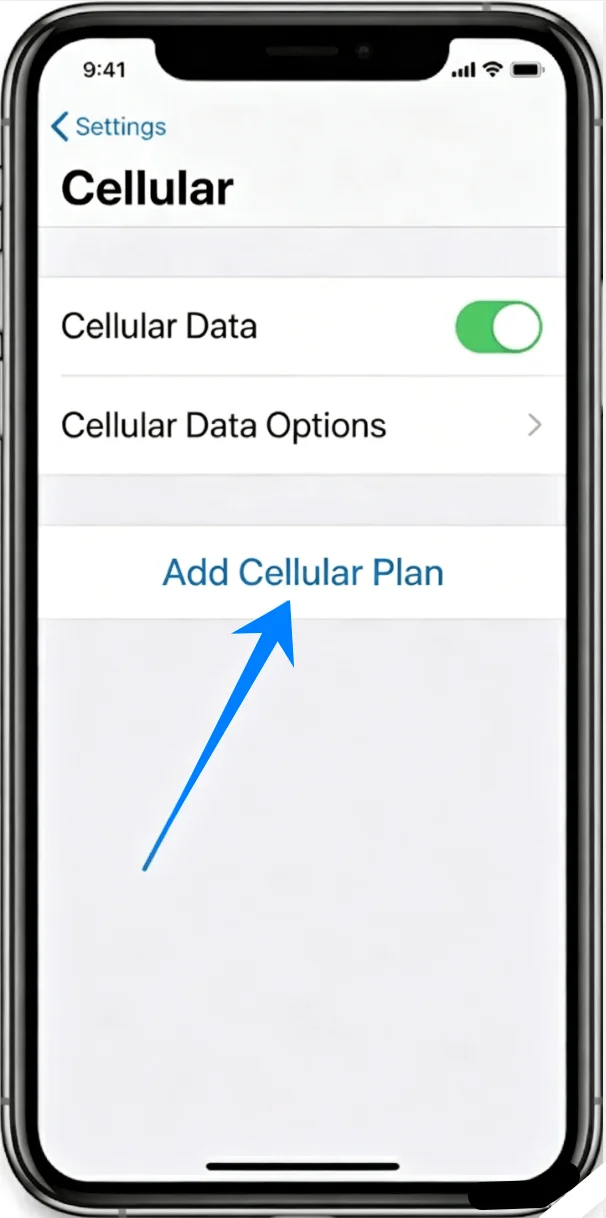

Tap Add Cellular Plan

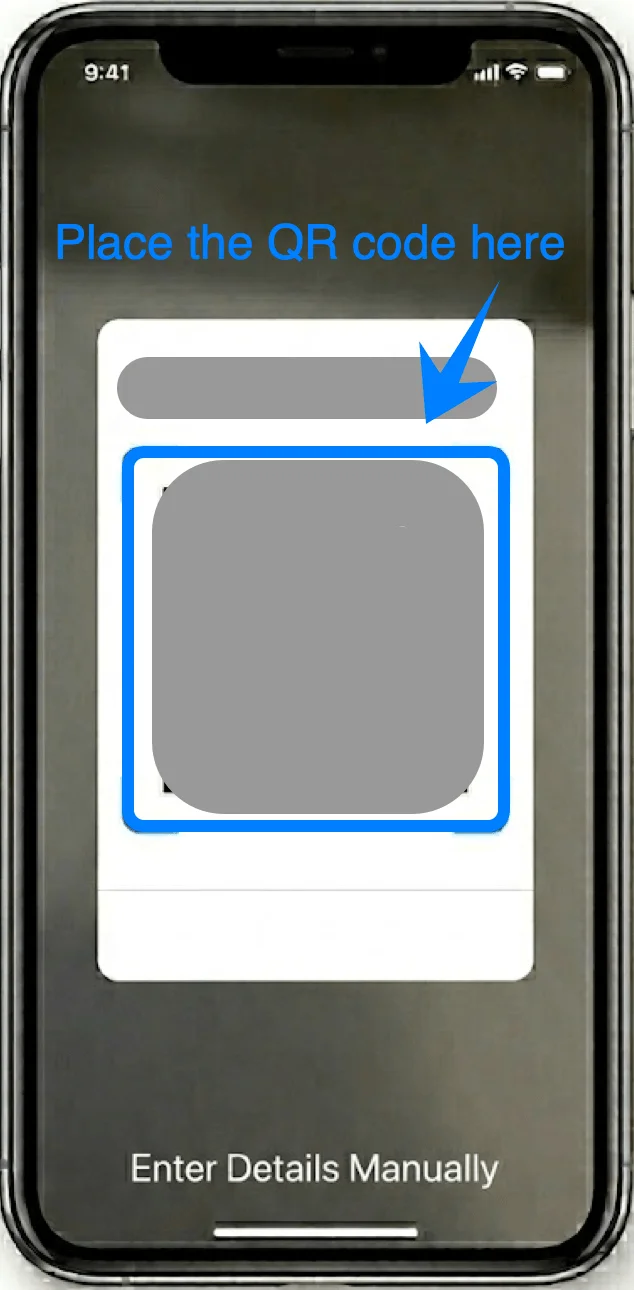

Step 3: Scan the QR Code
The camera interface will open automatically
Position your iPhone so the QR code appears within the frame
Wait for the device to recognize the code
Step 4: Confirm Plan Addition
When prompted, tap Add Cellular Plan
Step 5: Label the eSIM Line
Select a label (e.g., Primary, Secondary, Work, Travel)
Tap Continue
Step 6: Set Default Line Preferences
Choose your Default Line for calls and messages, tap the preferred line, then tap Continue
Select which line to use for iMessage & FaceTime, then tap Continue
Choose a line for Cellular Data, then tap Continue
Method 2: Install eSIM via Manual Input
Step 1: Open Cellular Settings
Tap Settings
Scroll down and tap Cellular (This option may appear as “Mobile Service” or “Mobile Data” depending on system language or region)
Step 2: Start eSIM Setup
Tap Add Cellular Plan
Step 3: Choose Manual Entry

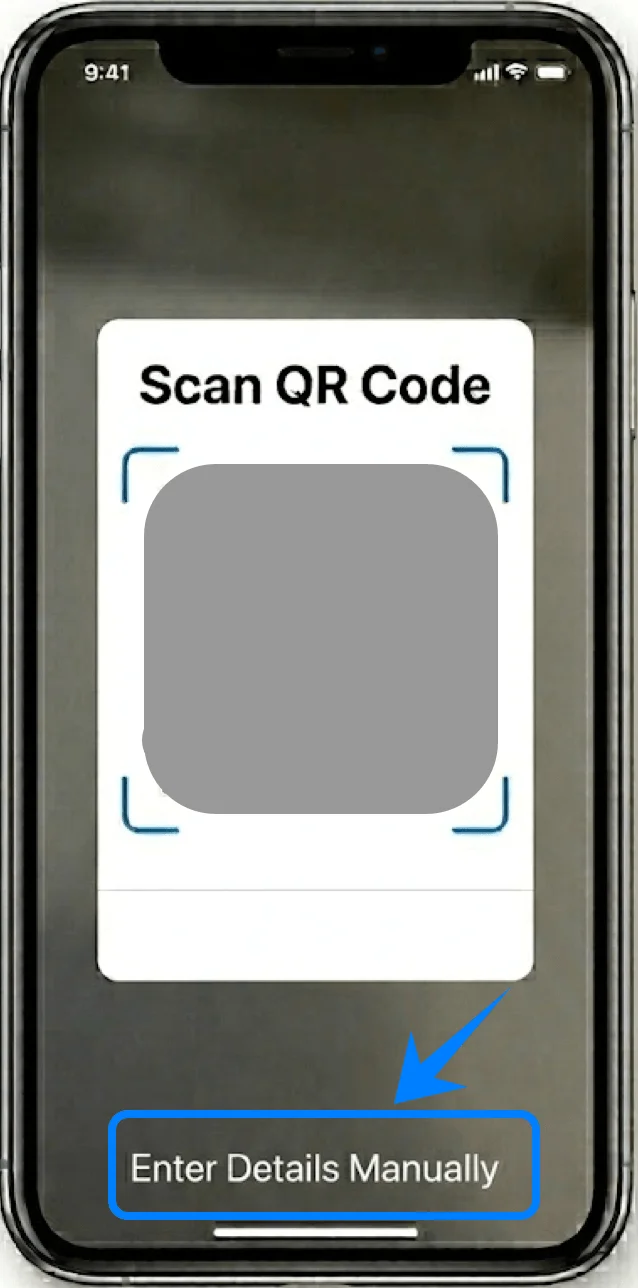

At the bottom of the screen, tap Enter Details Manually
Step 4: Input Activation Information

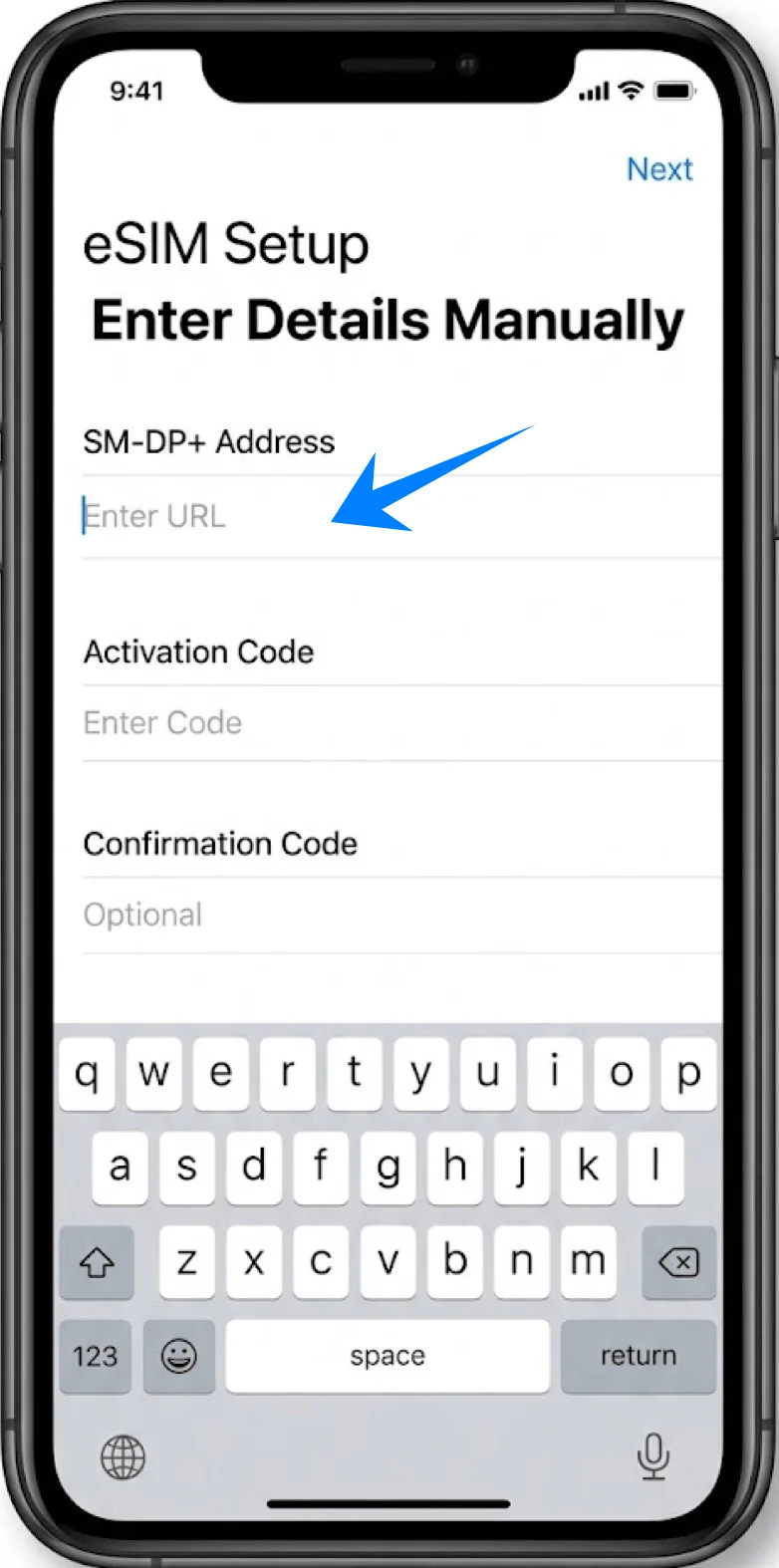

Tap the SM-DP+ Address field
Enter the address exactly as provided by your carrier
Tap the Activation Code field
Enter the code precisely (case-sensitive)
If provided, enter the Confirmation Code

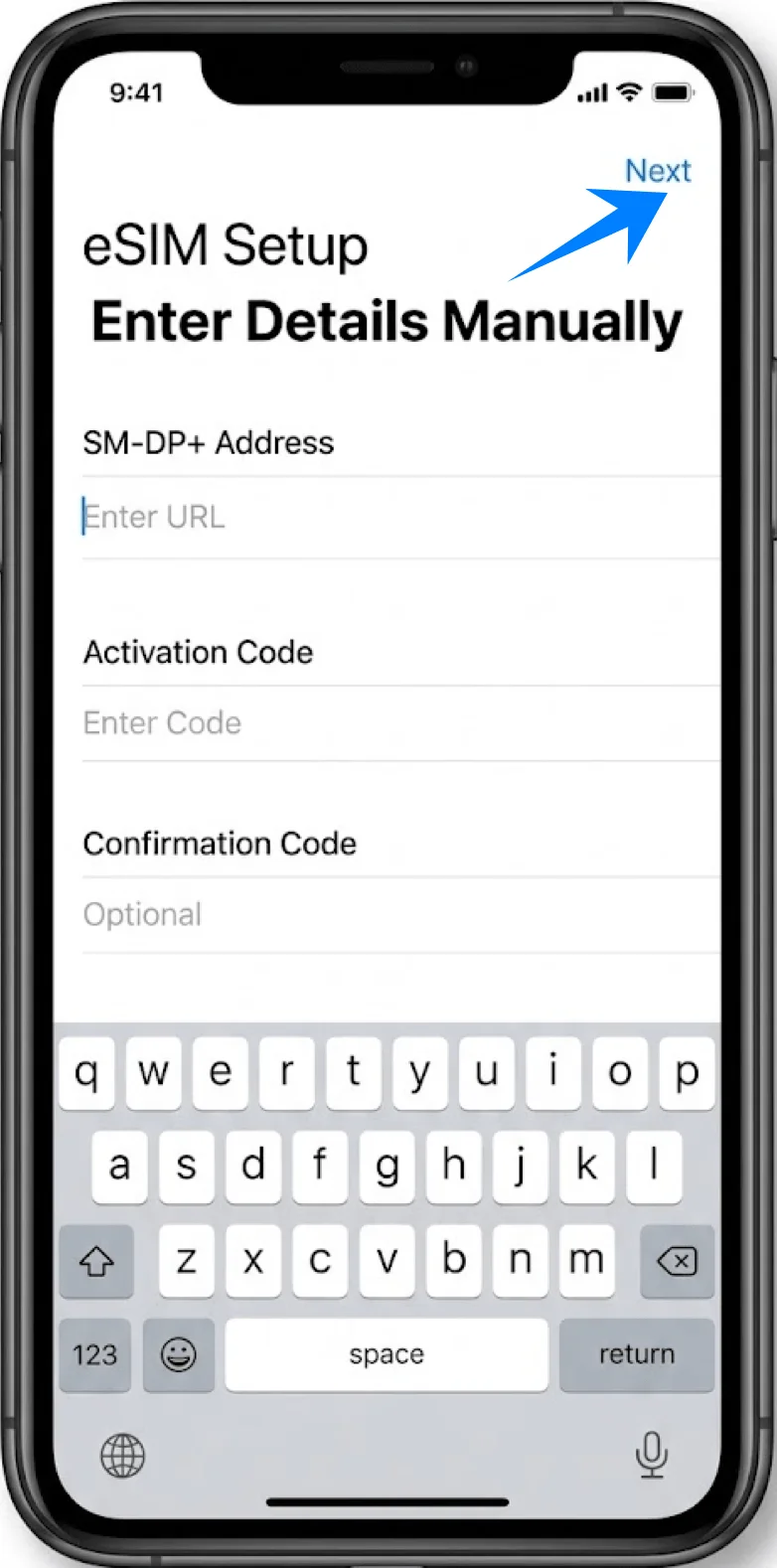

Tap Next (top-right corner)
Step 5: Activate the Plan
Wait while the iPhone verifies and downloads the eSIM profile
When prompted, tap Add Cellular Plan
Step 6: Label the eSIM Line
Choose a label (e.g., Business, Secondary)
Tap Continue
Step 7: Configure Usage Preferences
Select default line for calls → tap Continue
Select line for iMessage & FaceTime → tap Continue
Select line for cellular data → tap Continue
How to Confirm Successful eSIM Installation
Step 1: Check Cellular Plans
Go to Settings → Cellular (This option may appear as “Mobile Service” or “Mobile Data” depending on system language or region)
Confirm that a new plan appears under Cellular Plans
Step 2: Verify Signal and Status
Look at the status bar (top-right corner)
Ensure you see signal bars for the new line or dual signal indicators
Step 3: Confirm Line Details
Tap the newly added plan under Cellular Plans
Verify:
Carrier name
Line status shows “On”
Step 4: Test Connectivity
Make a call or send a message using the new line
Note: Some eSIM plans may not include voice calling support, so this feature might not be available depending on your plan.
Alternatively, test mobile data:
Go to Settings → Cellular (This option may appear as “Mobile Service” or “Mobile Data” depending on system language or region) → Cellular Data
Ensure the correct line is selected
Conclusion
By completing the setup, you’ve experienced how straightforward it is to get connected using an eSIM.
The entire process—from adding the plan to activating it—can be done directly on your device without handling any physical components.
This not only saves time but also reduces the chances of setup issues. Overall, eSIM provides a more efficient and flexible way to manage your mobile connection, especially once you become familiar with the process.
